Unlock Your Electronics Projects with PROTO: The Ultimate Circuit Simulation App

In the world of electronics, simulation tools are invaluable for both beginners and seasoned engineers. With PROTO, you can effortlessly check voltages, currents, and a myriad of other variables in real-time. This powerful application is designed to enhance your projects with Raspberry Pi, Arduino, or ESP32, making it an essential tool for anyone looking to dive into the realm of electronics.

Real-Time Circuit Tuning with Multichannel Oscilloscope

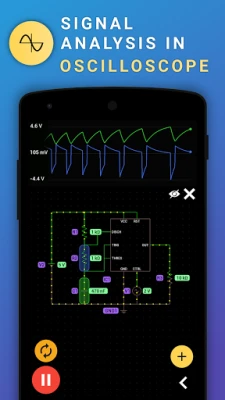

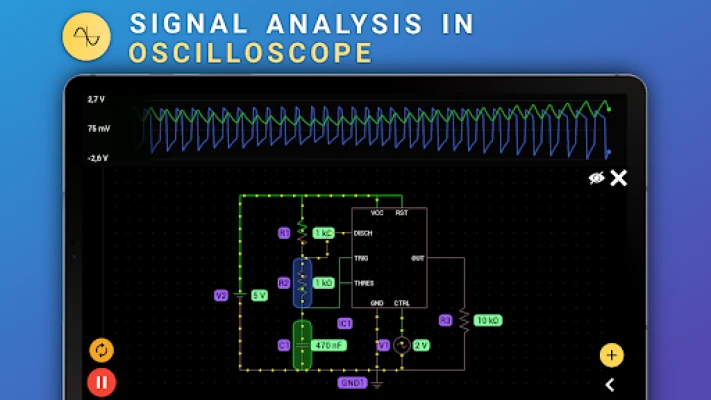

One of the standout features of PROTO is its four-channel oscilloscope. This allows users to visualize multiple signals simultaneously, providing a comprehensive view of your circuit's performance. Whether you're troubleshooting or optimizing your design, the oscilloscope enables you to tune your circuit in real-time, ensuring that you achieve the desired outcomes.

Comprehensive Features for Enhanced Learning

PROTO is not just a simulation tool; it’s a complete learning platform. Here are some of the key features that make it a must-have for electronics enthusiasts:

• ✅ Animations of Voltage Values and Current Flows: Visualize how electricity moves through your circuit.

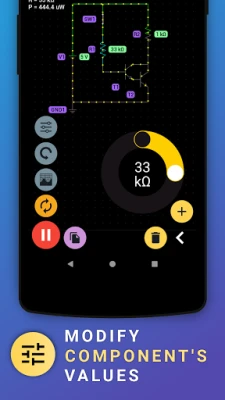

• ✅ Adjust Circuit Parameters: Modify voltage, current, and other settings to see immediate effects.
• ✅ Single Play/Pause Button: Control your simulation with ease.
• ✅ Copy Electronic Components: Easily replicate components for complex designs.

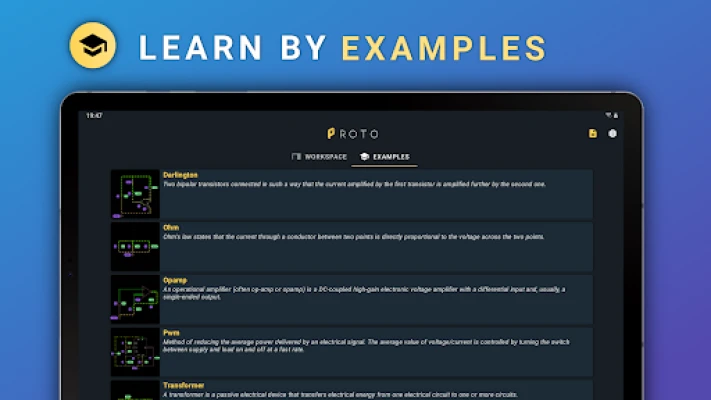

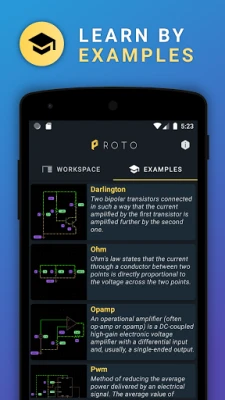

• ✅ Learn by Examples: Access a library of examples within the app to enhance your understanding.
• ✅ Share Circuits: Collaborate with friends by sharing your designs.
• ✅ Multiple Themes: Choose from Dark, Light, Ocean, or Solarized themes for a personalized experience.
• ✅ Export Options: Save your work in PNG, JPG, or PDF formats.
• ✅ Video Tutorials: Access a range of tutorials to deepen your knowledge of electronics.
• 🔥 Future Arduino Support: Stay tuned for upcoming features that will enhance your Arduino projects.

Diverse Component Library for All Your Needs

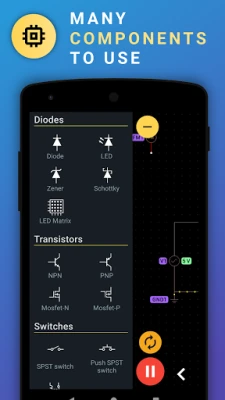

PROTO boasts an extensive library of components, making it suitable for a wide range of projects. Here’s a glimpse of what you can find:

Basic Components

• DC, AC, Square, Triangle, Sawtooth, Pulse, and Noise Voltage Sources
• Current Sources, Resistors, Potentiometers, Capacitors, and Inductors
• Diodes (Rectifying, LED, Zener, Schottky) and Transistors (NPN, PNP, MOSFET)
• Switches (SPST, Relay), Bulbs, Operational Amplifiers, and Timer 555 (NE555)

Digital Components

• Digital Gates (AND, NAND, OR, XOR, NOR, NXOR, Inverter)
• Voltmeter, Ammeter, Fuse, and Photoresistor
• Analog-to-Digital Converter (ADC) and Accelerometer
• Logic Inputs and Outputs, Probes, and Voltage Rails

Advanced Packs for Specialized Needs

PROTO also offers specialized packs for advanced users:

• Analog Pack: Includes Tunnel Diodes, Varactors, and Solar Cells.
• Digital Pack: Features Adders, Counters, and Flip-flops.
• Misc Pack: Contains Wobbulators, DACs, and Frequency Meters.
• JavaScript Pack: Write and execute code with a built-in JavaScript interpreter.
• 7400 TTL Pack: Access classic TTL components for your designs.
• 4000 CMOS Pack: Utilize CMOS technology for modern applications.
• Sensors Pack: Integrate various sensors like Pressure, Gyroscope, and Temperature.

Community Engagement and Support

PROTO encourages user engagement through its GitHub platform, where you can report issues or request new components. This community-driven approach ensures that the app evolves based on user feedback, making it a continuously improving tool for electronics enthusiasts.

Conclusion: Elevate Your Electronics Experience with PROTO

Whether you are a hobbyist or a professional, PROTO offers a comprehensive suite of tools to enhance your electronics projects. With its real-time simulation capabilities, extensive component library, and user-friendly interface, PROTO is poised to become your go-to application for circuit design and analysis. Start exploring the world of electronics today and unlock your potential with PROTO!
